HWP-120 Firewood Processors
One person can process a cord or more an hour, with logs up to 15’ in diameter and 12’ long, from the safety and comfort of their cab.
3 Choices — One Great Processor

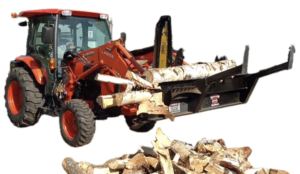

HWP-120 Adjustable
The HWP-120 Adjustable can be attached to most skid steers, tractors, loaders and excavators. Its wedges can be interchanged with 2-, 4- or 6-way wedges available. Wedge height is also adjustable.

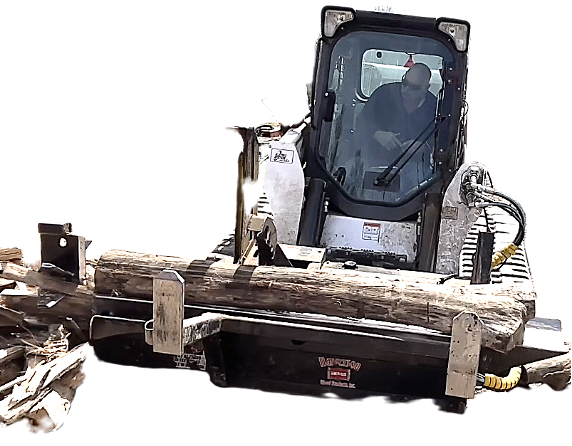

When attached to a host machine, the HWP-120 can go to the logs, lift a log, transport it to the firewood pile or container, cut it to length, split it and discharge the firewood. You control the entire process from the safety and comfort of your cab.
HWP-120 Fixed
The HWP-120 Fixed can be attached to most skid steers, tractors, loaders and excavators. Its wedges cannot be interchanged, nor can the wedge height.
When attached to a host machine, the HWP-120 can go to the logs, lift a log, transport it to the firewood pile or container, cut it to length, split it and discharge the firewood. You control the entire process from the safety and comfort of your cab.

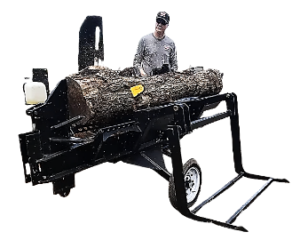

HWP-120 TR
No Host, No Problem!
The HWP-120 TR is a stand-alone firewood processor with all of the characteristics of the other HWP-120s. Its 38 HP motor powers the processor to full HWP-120 performance. Its trailer helps you take it to where you need firewood, so you can process firewood when you need it.
The HWP-120 TR can lift a log, transport it to the firewood pile or container, cut it to length, split it and discharge the firewood.
Because they can process a logger’s cord or more per hour from 15” diameter, 12’ logs, the HWP-120s are a great solution for residential or commercial heating.
Key Features
- Single-Operator Operation: The HWP-120 does three jobs with one machine, enabling a single operator to process more wood in less time.
- Simple Controls: Lift a log onto the deck, clamp it down with the grab arm and cut it to length. Once the cut piece falls into place, it’s immediately split by the wedge.
- On-the-Go Convenience: Take the HWP-120s directly to the source — their mobile design lets you bring the processor into the woods, eliminating the need to transport heavy logs to a stationary splitter.
- Direct Loading: Process firewood directly into your truck or trailer, eliminating the need for additional handling and saving you valuable time.
- Quick Attach/Detach Mounting: Effortlessly attach and detach the processor to your skid steer, maximizing efficiency and minimizing downtime.
Compatibility
Wondering if the HWP-120s are compatible with your equipment? Rest assured — our universal attachment plates are engineered to work seamlessly with a wide range of skid steer brands and other machinery. Basic compatibility requirements include a Case Drain, a minimum 14.5 GPM flow rate, and a minimum 2,850 PSI.
HWP-120 Product Specs
| Length |
Travel = 99″ (203251 cm)
Working = 121″ (307cm) |
| Width |
55″ (140 cm) |
| Height |
51″ (130 cm) |
| Weight |
1,280 lbs. (581 kg) |
| Material |
1/4″ Steel |
| Minimum Pressure |
2,850 (196 bar) |
| Flow |
14.5-20 GPM (53 – 76 l/min) |
| Connections |
1-Pressure, 1-Return
1-Case Drain |
| Max Log Diameter |
15″ (38 cm) |
| Max Log Length |
12′ (3.66 m) |
| Min Log Length |
6′ (1.82 m) |
| Firewood Cut Length |
Up to 22″ (56 cm) |
| Saw Bar |
25″ (64cm) Harvester |
| Saw Chain |
78 DL .404 pitch/18HX |
| Saw Motor |
Bent Axis Piston |
| Saw Oiler |
Automatic 2 Qt (1.89 l) |
| Max Saw Cut |
15″ (38 cm) |
| Splitter Cylinder |
Standard 3.5″ x 24″ Stroke |
| Splitter Force |
28,850 @ 3,000 psi |
| Splitting Wedge |
4-way or 6-way Manually Adjustable |
| In-Feed |
Sliding Trough Carries Log to Wedge |
| Mounting |
Universal Quick Attach
SAE Spec J2513 |
| Measuring |
NA |
Frequently Asked Questions
Q: How will I know if the HWP-120 will work with my machine?
A: All of our processors are built to be compatible with many common skid steer brands and other equipment that use the universal attachment plate.
Here are some of the basic compatibility requirements that must be available on your skid steer to operate our processors:
- Case Drain
- Minimum 14.5 GPM flow rate
- Minimum 2,850 PSI
Q: How big a log can I process?
A: The HWP-120 can process logs up to 15” in diameter and 12’ in length.
Q: Where can I purchase one?
A: Get a quote from our sales team, who will refer you to a full-service dealer near you.
HWP-120 Product Options
- The HWP-120 is available with a fixed head or an adjustable head.
Similar Products
The HWP-140B
Bigger Logs, Less Time
Using the HWP-140B, one person can process two or more logger’s cords of firewood an hour from 18” diameter, 12’ logs from the safety and comfort of the host machine’s cab. Compatible with most skid steers, tractors, loaders and excavators.
Get Your Hands on an
HWP-120 Firewood Processor
Get in touch with our sales team to purchase this processor.
