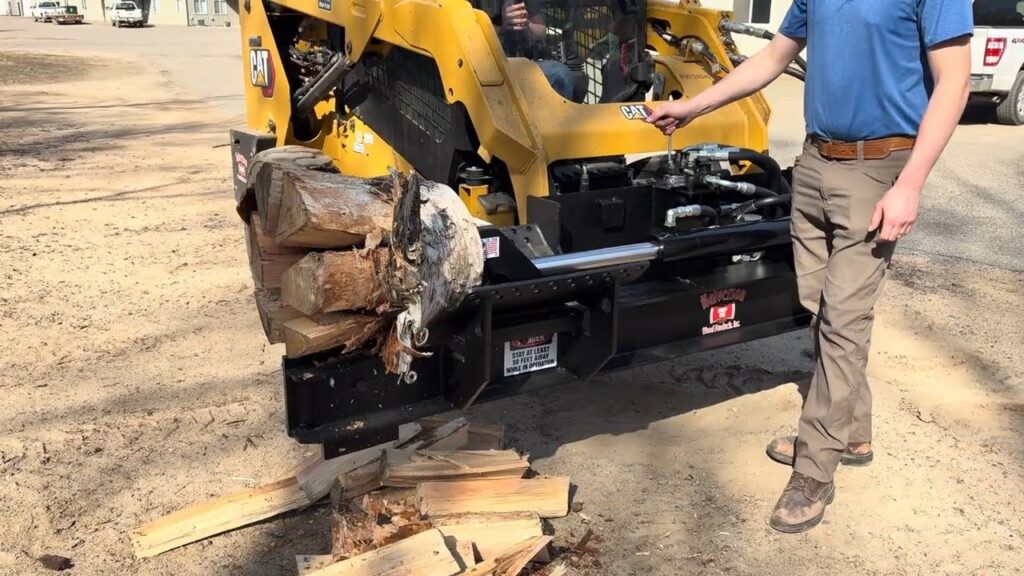

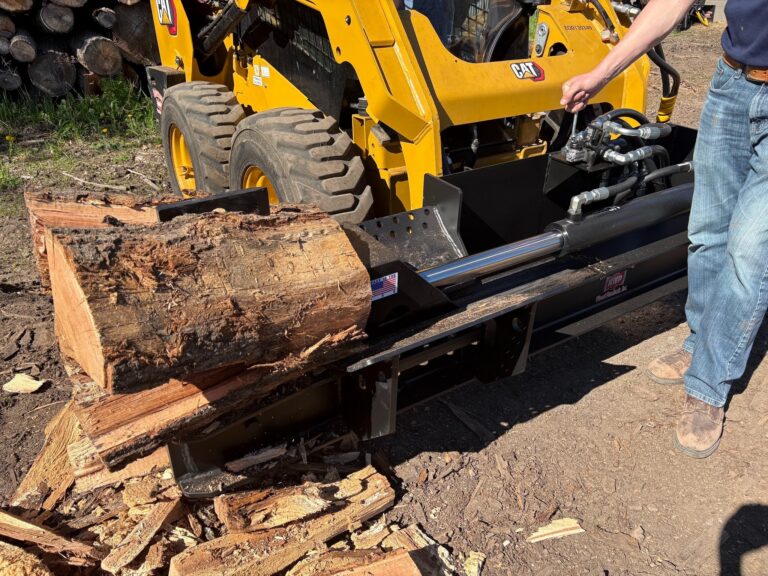

The Halverson HWP-135 is built to get through rounds quickly. Load a round into the trough, and the HWP-135 splits and ejects it in a single pass with no repositioning or extra steps. It attaches to your skid steer, tractor, excavator or front loader and runs with one or two operators. It comes standard with a manual control valve, giving you control over the final product. Lock out the manual control valve and use the HWP-135 Lightning as a two-operator process for faster splitting.
Toss the round into its trough, then split and eject onto the pile or into the container of your choice.

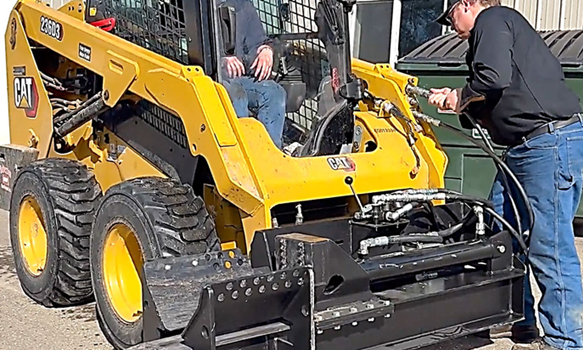

Universal Quick Attach
This processor can be attached to most skid steer, tractor, excavator and front loader host machines in minutes using their Universal Quick Attach system.
One or Two Person Operation
The basic model HWP-135 is operated using the host machine’s cab controls and works best with two people, one in the cab and one loading rounds. The manual control valve allows one person to control the splitter when the host machine has a continuous-flow function available for operation outside the cab.
One- or Two-Person Operation: The HWP-135 comes standard with a manual control valve, giving you control over the final product. Lock out the manual control valve and use the HWP-135 Lightning as a two-operator process for faster splitting.
Direct to Container Discharge: Thanks to the HWP-135’s vertical mobility, you can discharge blocked firewood onto a pile, firewood container, truck or trailer.
Re-Splits: The HWP-135 gives operators the ability to re-split large pieces to a more desired firewood sizes.
On-the-Go Convenience: Take the HWP-135 directly to the source – its mobile design allows you to take the splitter to the woods, eliminating the need to transport heavy logs to a stationary splitter

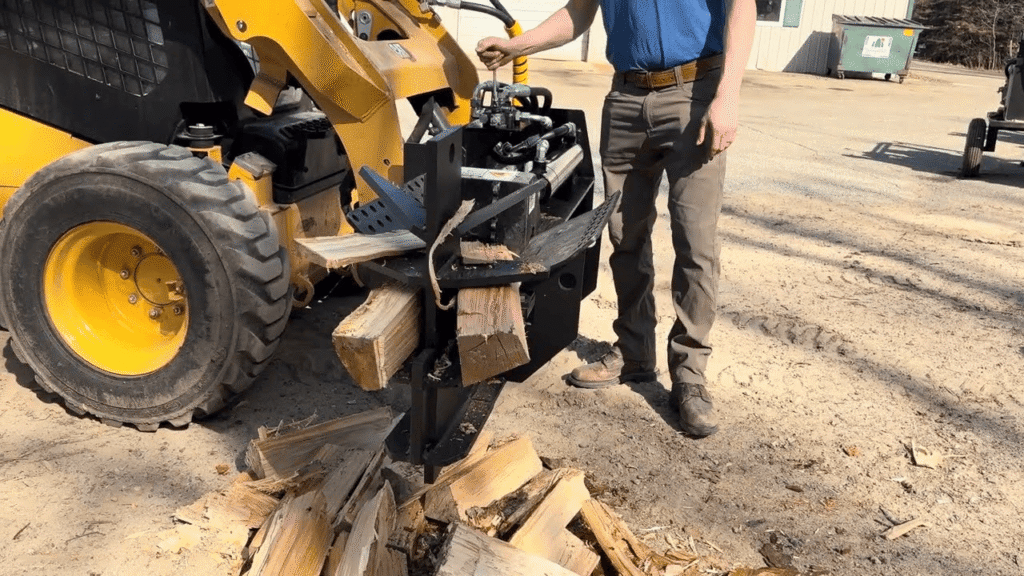

Simple Controls: Place a cut round into the hopper and use the manual control lever to push it through the splitting wedge.
Quick Attach: Connect or disconnect in minutes using the universal attachment plate.
Will It Work with Your Machine?
Is the HWP-135 Lightning Splitter compatible with your equipment? Rest assured — our high-quality universal attachment plates work seamlessly with a wide range of skid steer brands and other machinery.
To use the HWP-135 Lightning Splitter, your machine needs:
15.5-20 GPM hydraulic flow
Minimum 2850 PSI hydraulic pressure
Ability to safely handle 747 lbs (339 kg)
Specs
OpenClose
HWP-135 Product Specs
Length
80” (203 cm)
Width
24” (61 cm)
Height
29” (74 cm
Weight (XLT Model)
747 lbs. (339 kg)
Material
3/8″ Steel
Minimum Pressure
2,850 PSI (196 bar)
Flow
15.5 gpm (57 l/min)
Connections
1-Pressure, 1-Return
Max Log Diameter
22” (56 cm)
Max Log Length
22” (56 cm)
Splitter Cylinder
Custom 3.5” Bore x 24” Stroke
Splitter Force
28,500 lbs. @ 3,000 PSI
Splitting Wedge
4-, 6- or 8-way adjustable
Mounting
Universal Quick Attach SAE Spec J2513
FAQ
OpenClose
Frequently Asked Questions
Q: Will the HWP-135 work with my host machine? A: Each Halverson Wood Products firewood processor is compatible with most common skid steer brands and other equipment that uses the universal quick attachment plate.
Your machine must have these basic compatibility requirements:
15.5-20 GPM hydraulic flow rate
Minimum 2850 PSI
Ability to safely lift and operate 1,692 lbs (768 kg)
Q: How big a log can I process? A: The HWP-135 can process logs up to 22” in diameter and 22’ in length.

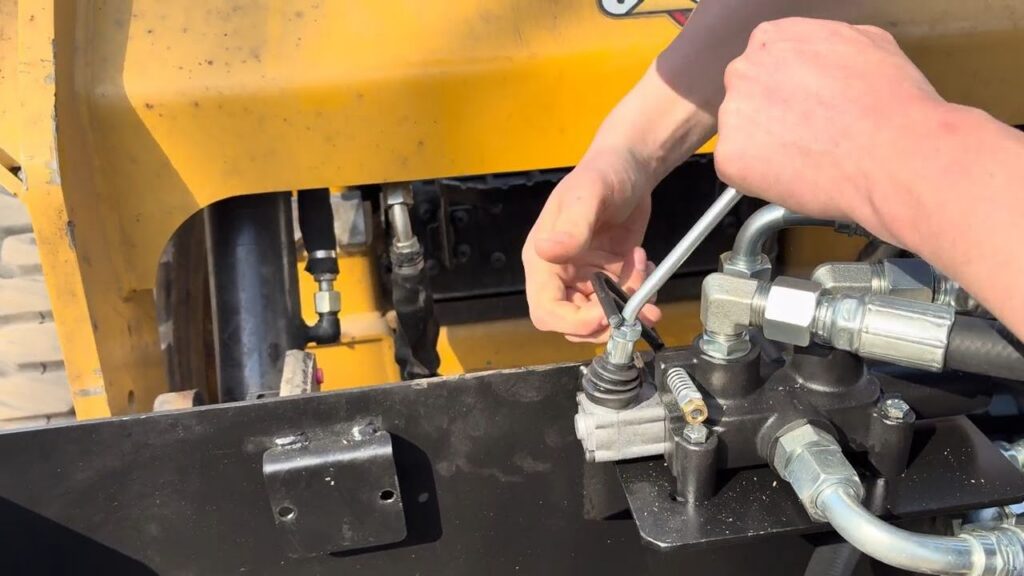

Q: How do I set up the HWP-135? A: Setup is straightforward. First, secure it using your host machine’s quick-attach mounting system. Next, connect the pressure and return lines using the hydraulic quick couplers, and you’re ready to start processing firewood.
Q: Where can I purchase one? A:Get a quote from our sales team, who will refer you to a full-service dealer near you.
